Craftbot 3D Printer
Digital Arts
Moving Your Ideas Forward

Craftbot offers a variety of printers ideal for makers, industrialists and manufacturers.

Single Extruder 3D Printers

Craftbot Plus Pro    -     Flow      &      Flow XL

Dual Extruder 3D Printers

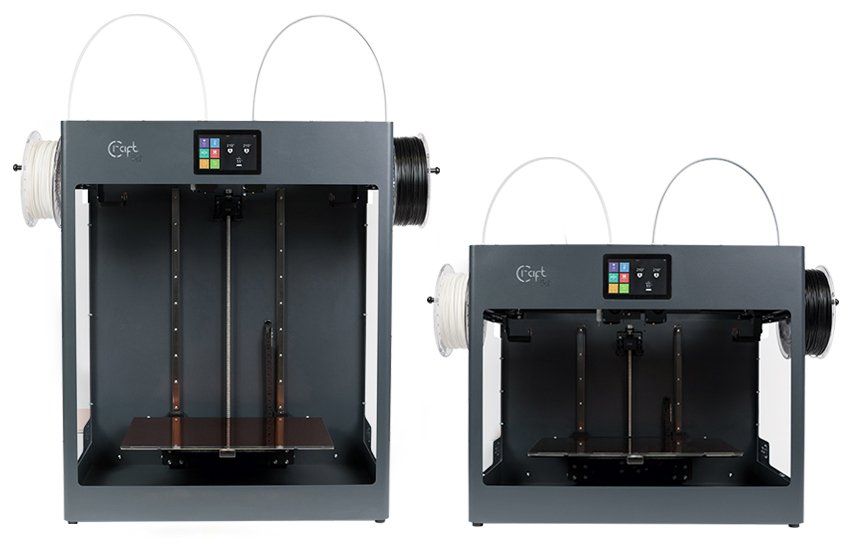

Flow IDEX XL     &     Flow IDEX

DOUBLE YOUR PERFORMANCE

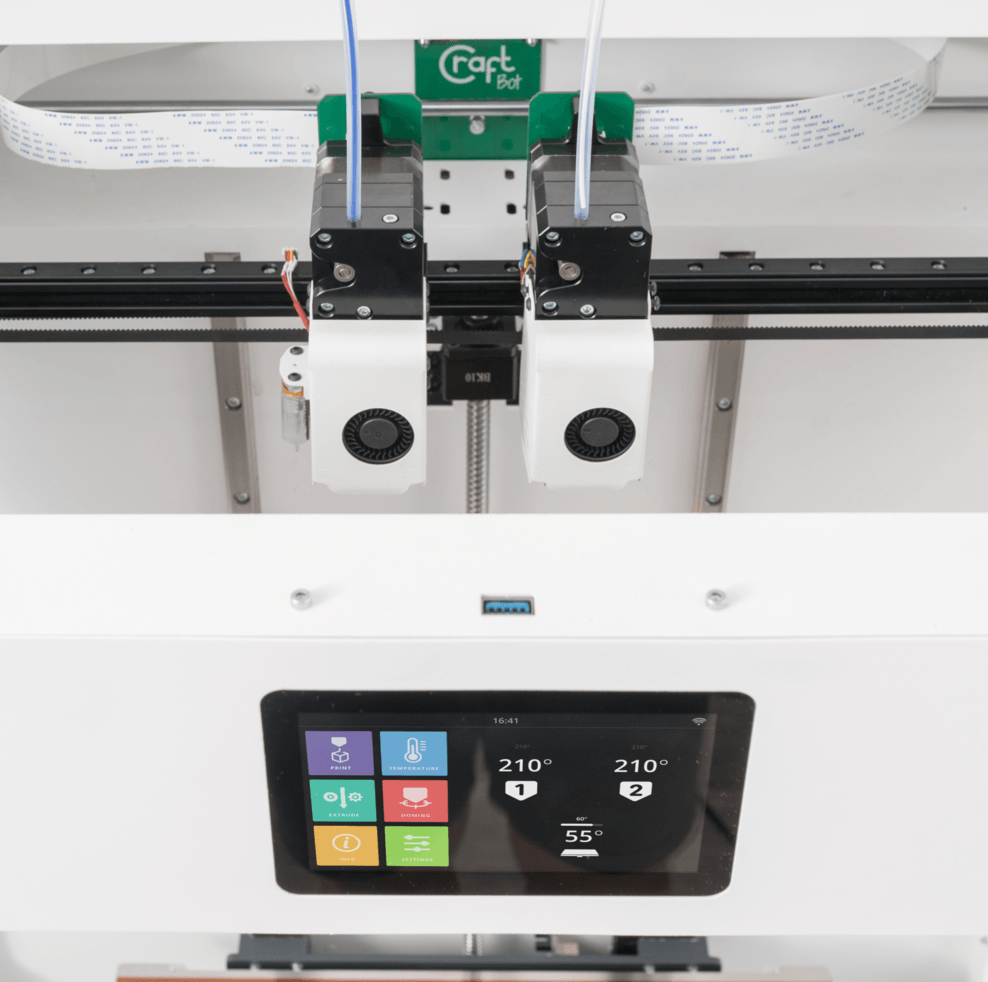

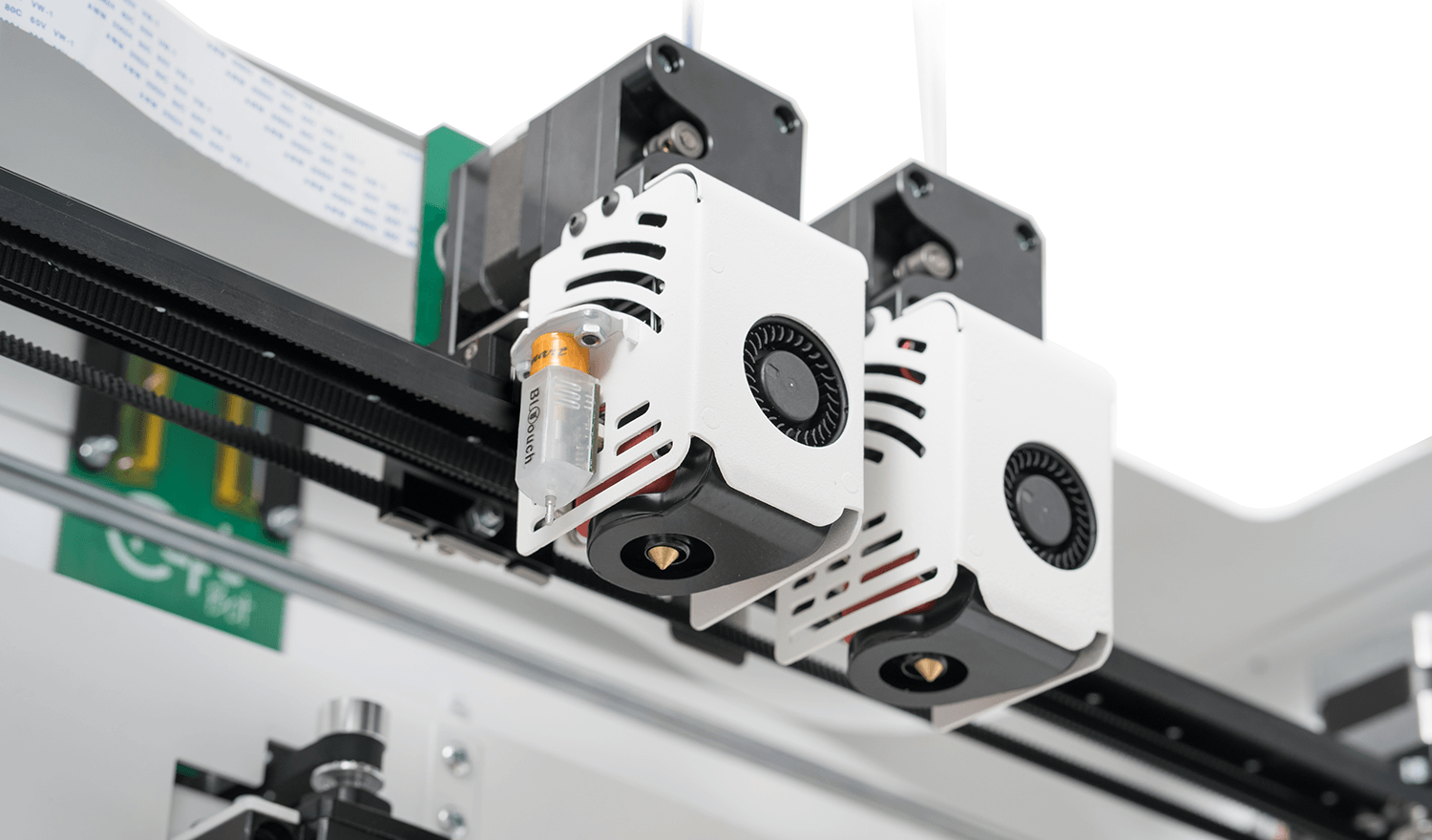

Our IDEX printers, have a large print volume and high-quality independent dual extruders that are able to print two objects at the same time (mirror

or parallel mode). You can also use two different materials, print bicolor items, or object with PVA support.

If you have production in mind, this the printer we recommend. Digital Arts

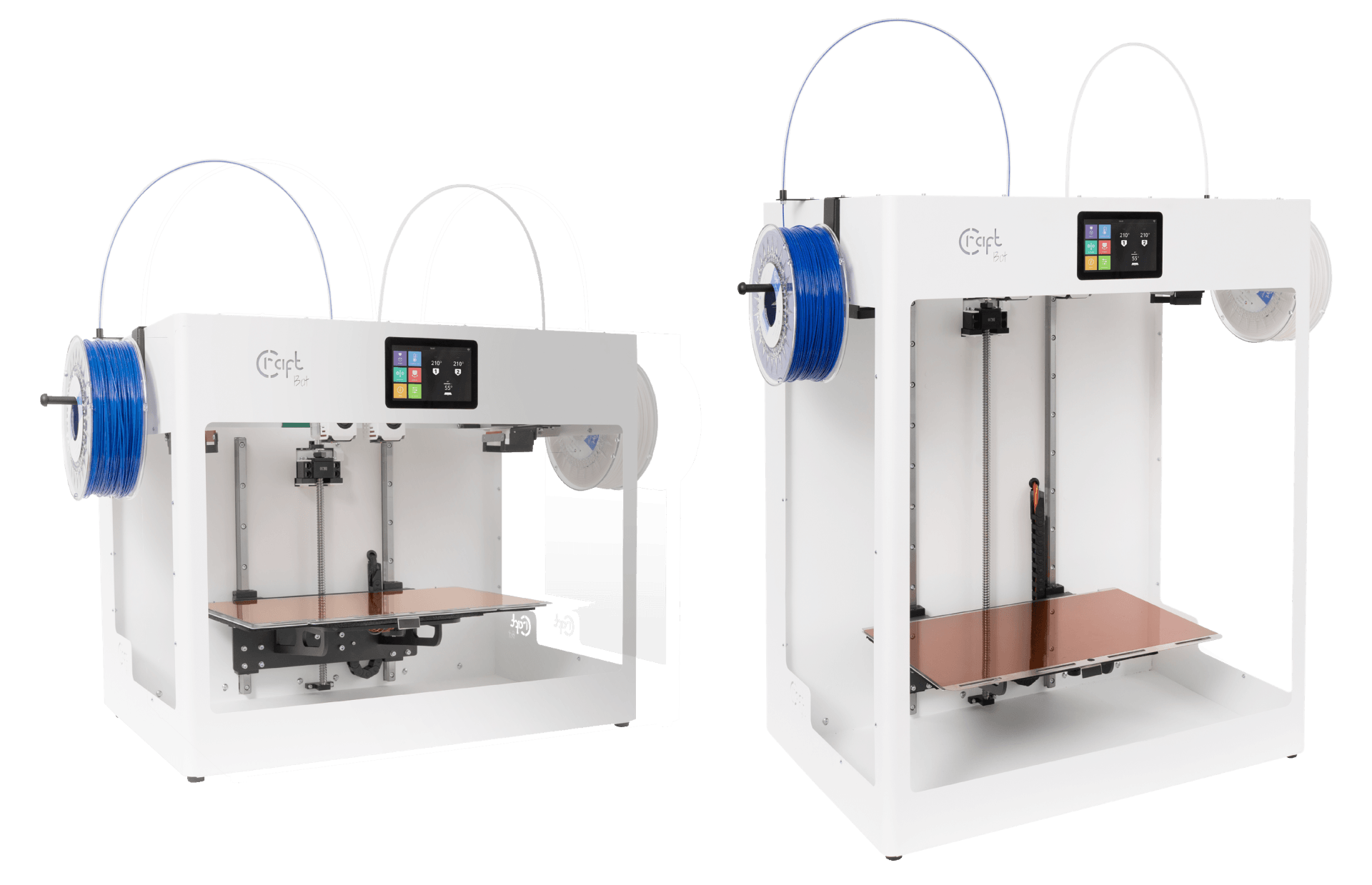

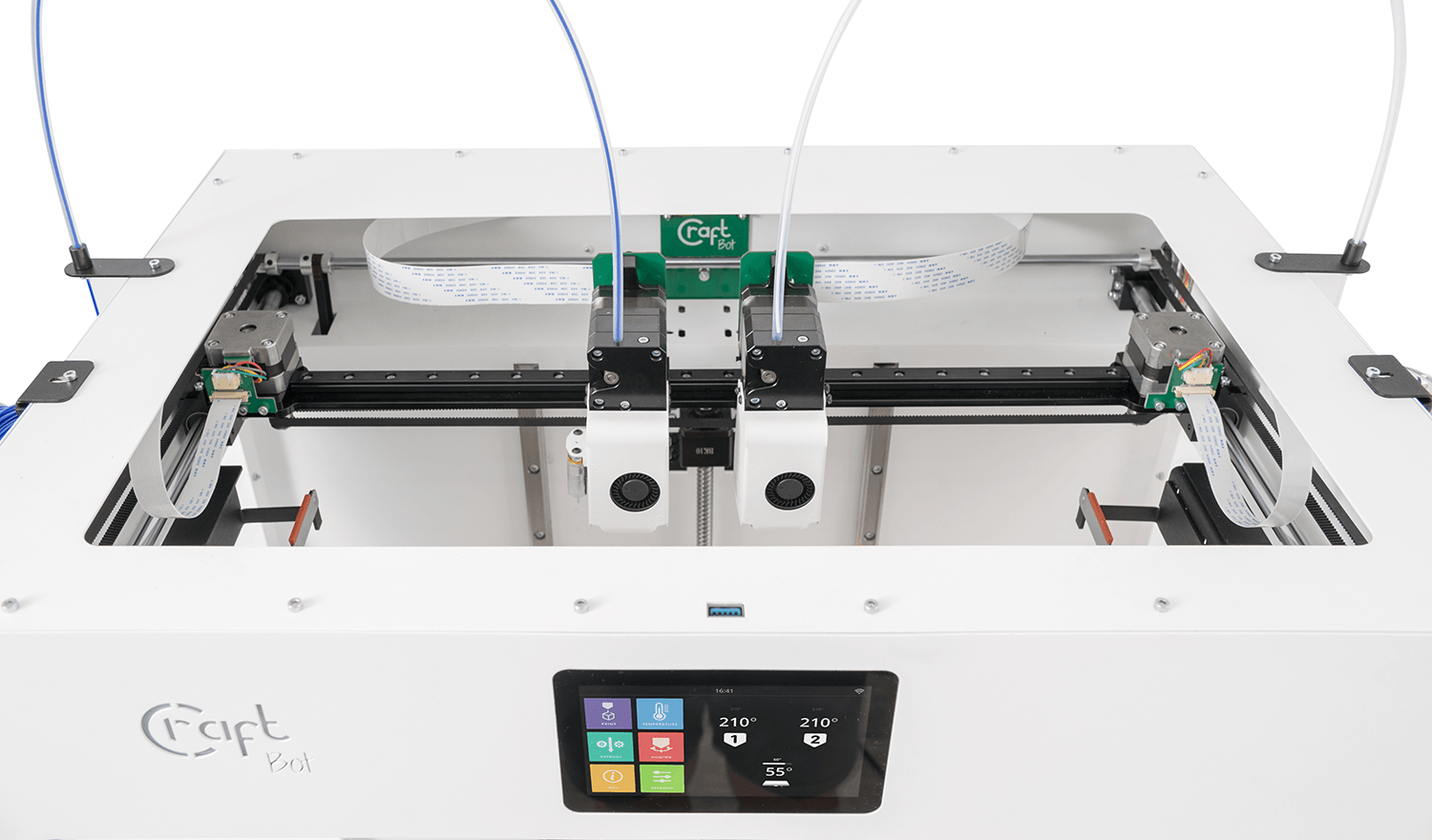

Dual Independent Extruders 3D Printers

CraftBot Flow IDEX XL is THE BIGGEST IDEX PRINTER OF THE WORLD

DIMENSIONS - IDEX XL

Build volume: 425 x 250 x 500 mm
16.7" wide  x 9.8" deep x 19.7” high
Frame dimension:
635 x 450 x 790 mm - 25" x 17.7" x 31.1”
Weight: 38 kg
DIMENSIONS - IDEX
Build volume: 425 x 250 x 250 mm
16.7" wide  x  9.8" deep  x 9.8” high
Frame dimension:
635 x 450 x 540 mm - 25" x 17.7" x 21.2”

PERFORMANCE

Print speed: up to 200 mm/s
Power consumption: max. 500 W

TEMPERATURE

Operating nozzle temperature: up to 300 °C

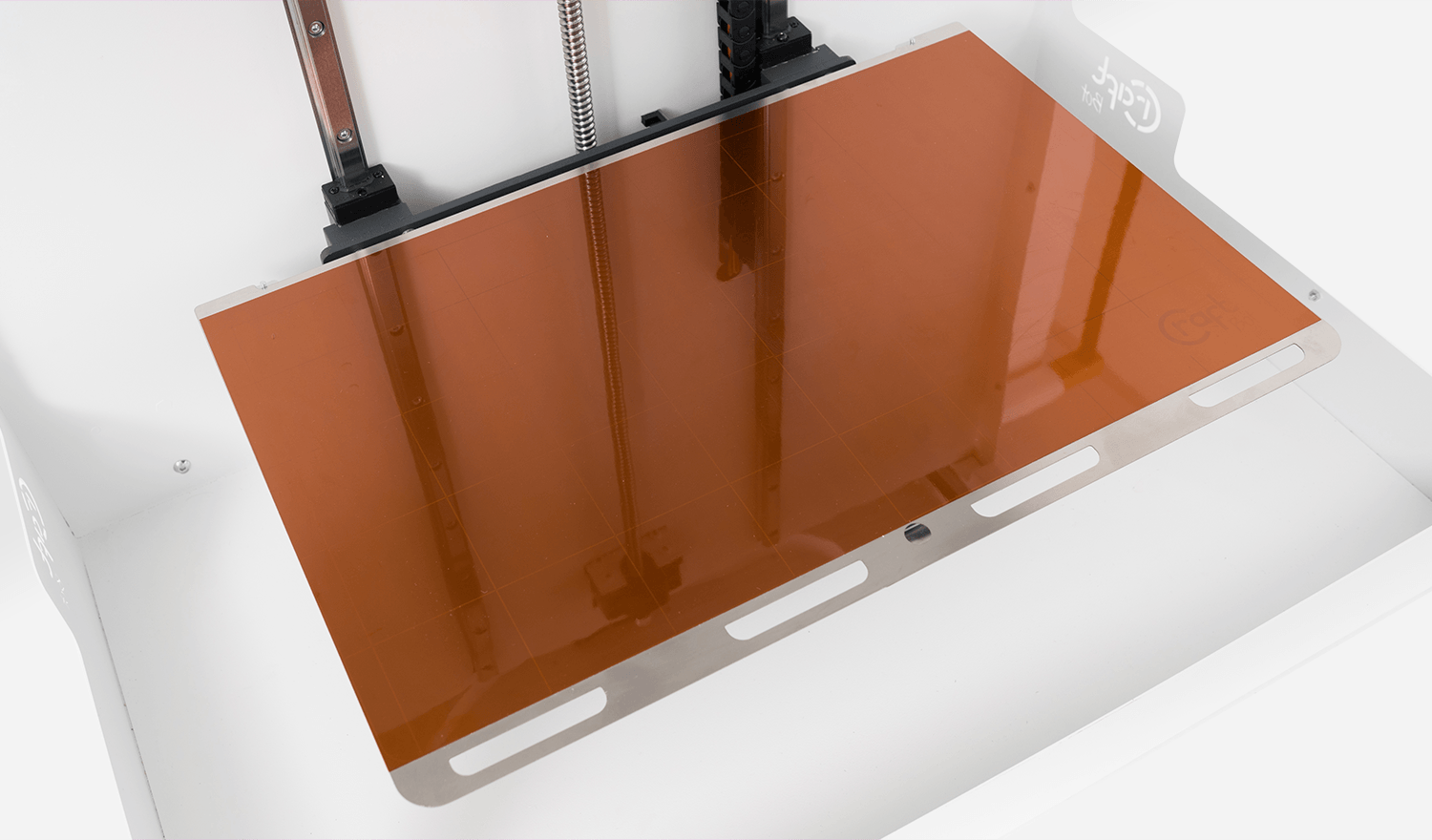

Operating heated build plate temperature:
60 - 110 °C

CraftBot Flow 3D Printer

1 Spool per print head of PLA (black and white)

3 Coils of Sample PLA

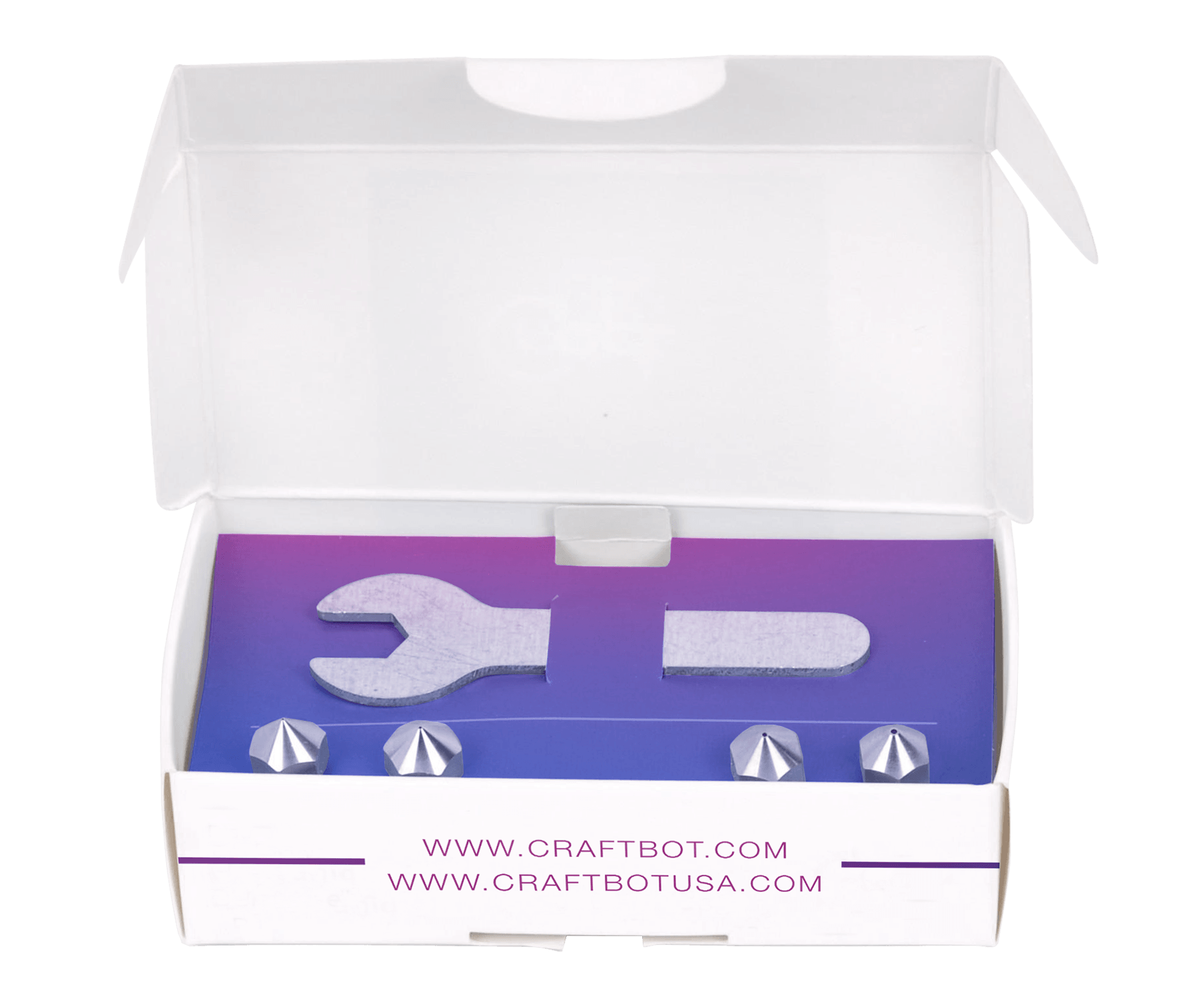

2 Nozzle Kits  if IDEX (0.25mm, 0.40mm, 0.60mm, 0.80mm nozzles and nozzle swap wrench)

Spool holders

Guide Tubes and Holders

Power Cable

Flash Drive

USB Cable

   TOOL KIT:

Large Square Wrench              -   Set of Allen Wrenches

Tweezers                                      -   Scraper

Grease Syringe                           -    Wire Cutters

Angled Tweezers                       -    Wire Brush

Nozzle Cleaning Needles       -    End Mill Set

Alcohol Pads                               -    Tool Kit Bag


Technology: FFF

Filament Diameter: 1.75mm

Nozzle: 0.4mm

Max Nozzle Temp: 300 C

Max Build Surface Temp: 110 C

Layer Resolution: 50 microns

Positional Precision: 12.5 microns x 12.5 microns x 5 microns (X x Y x Z)

Print Speed: Up to 200 mm/s

Bed Leveling: Automatic using BL Touch

Printable Materials: PLA, ABS, HIPS, PETG, Nylon

Power: 500 W

Software: CraftWare

Connectivity: USB, Ethernet

Controller Module: Raspberry Pi Compute Module 3+

Main Board: Atmel 32bit Processor

Drivers: TMC 2208

Filament Sensor: Runout, Jam

RASPBERRY PI IS THE ENGINE OF HMI

- enables future enhancements


WEB INTERFACE, IOT

- for 4.0 compatibility


BUILT IN CAMERA


5” COLOR TOUCH SCREEN

AND LED STATUS INDICATOR

- maximize the user experience

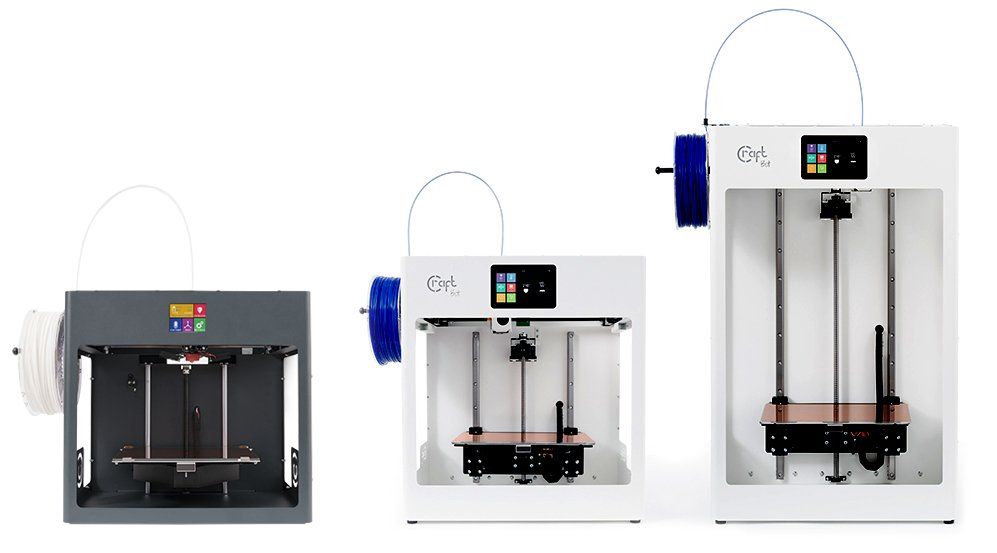

CraftBot Flow SINGLE EXTRUDER - THE COMPACT WORKHORSE
Good choice for both professionals and beginners. They have advanced functions which can make the cooperation and working process easier.

DIMENSIONS - FLOW XL

Build volume: 425 x 250 x 500 mm
11.8" wide x 7.9" deep x 19.7” high
Frame dimension:
485 x 400 x 790 mm - 19.1"  x  15.7" x 31.1”
Weight: 38 kg
DIMENSIONS - FLOW
Build volume: 425 x 250 x 250 mm
11.8" wide  x  7.9" deep  x 9.8” high
Frame dimension:
485 x 400 x 540 mm - 19.1"  x  15.7"  x  21.2”

PERFORMANCE

Print speed: up to 200 mm/s
Power consumption: max. 500 W

TEMPERATURE

Operating nozzle temperature: up to 300 °C
Operating heated build plate temperature:
60 - 110 °C
